LYNQ ELECTRONIC ARCHERY LEVEL

Keep cant feedback in your sight picture.

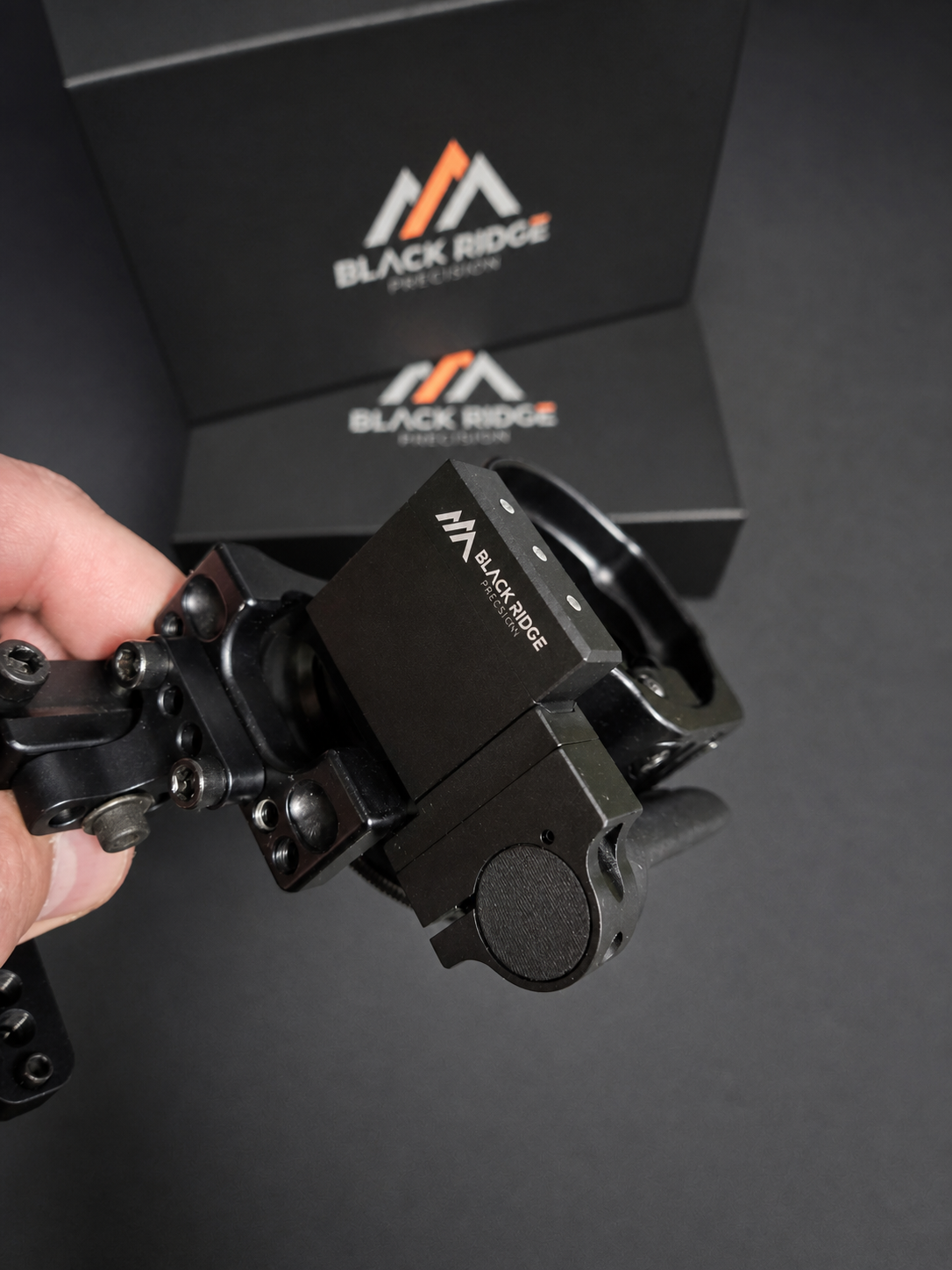

LYNQ is a compact electronic bow level that provides immediate, color-coded cant feedback at the sight. It helps archers confirm bow level without shifting attention away from the target, while adjustable sensitivity, brightness, orientation, and User Zero settings let the system match the sight configuration and shooting conditions.

Feature highlights

• Immediate color-coded bow-cant feedback

• Green level, blue roll-left, and red roll-right indication

• Six selectable light modes for different mounting orientations

• Five sensitivity settings from 0.2° to 1.0°

• Eight LED brightness levels

• Automatic orientation with selectable Orientation Lock

• User Zero for establishing the electronic level reference

• Startup battery-level indication

• Replaceable CR2032 battery

• Automatic LED sleep and configurable power-off

• Compact 1.1 oz / 28 g housing

• Sight-specific mounting configurations

• Weatherproof construction for most field conditions

Immediate feedback without leaving the target

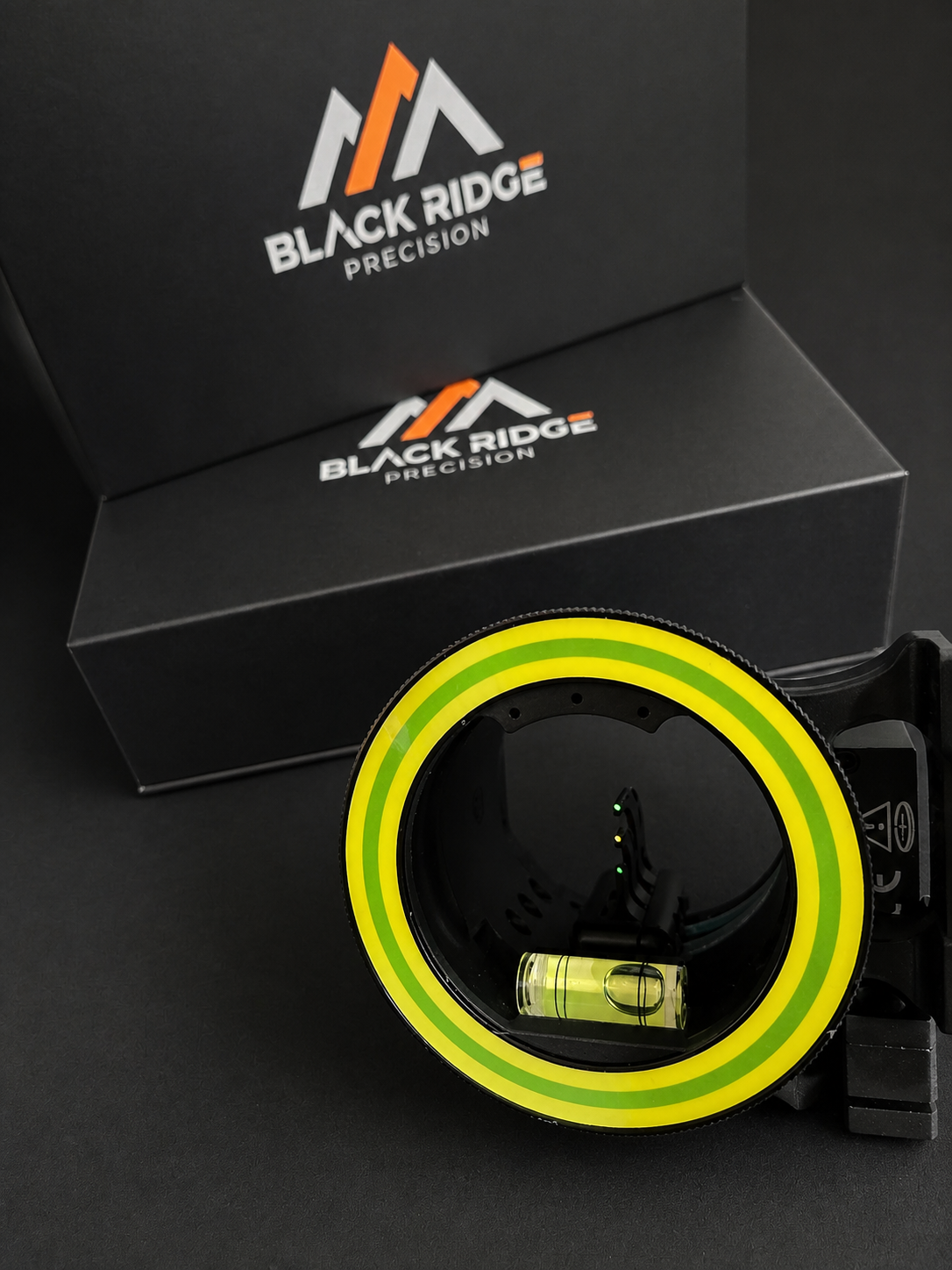

Small changes in bow cant can influence the shot, particularly as distance increases or terrain becomes steeper. LYNQ turns bow roll into a simple visual language: green indicates level within the selected tolerance, blue indicates roll left, and red indicates roll right.

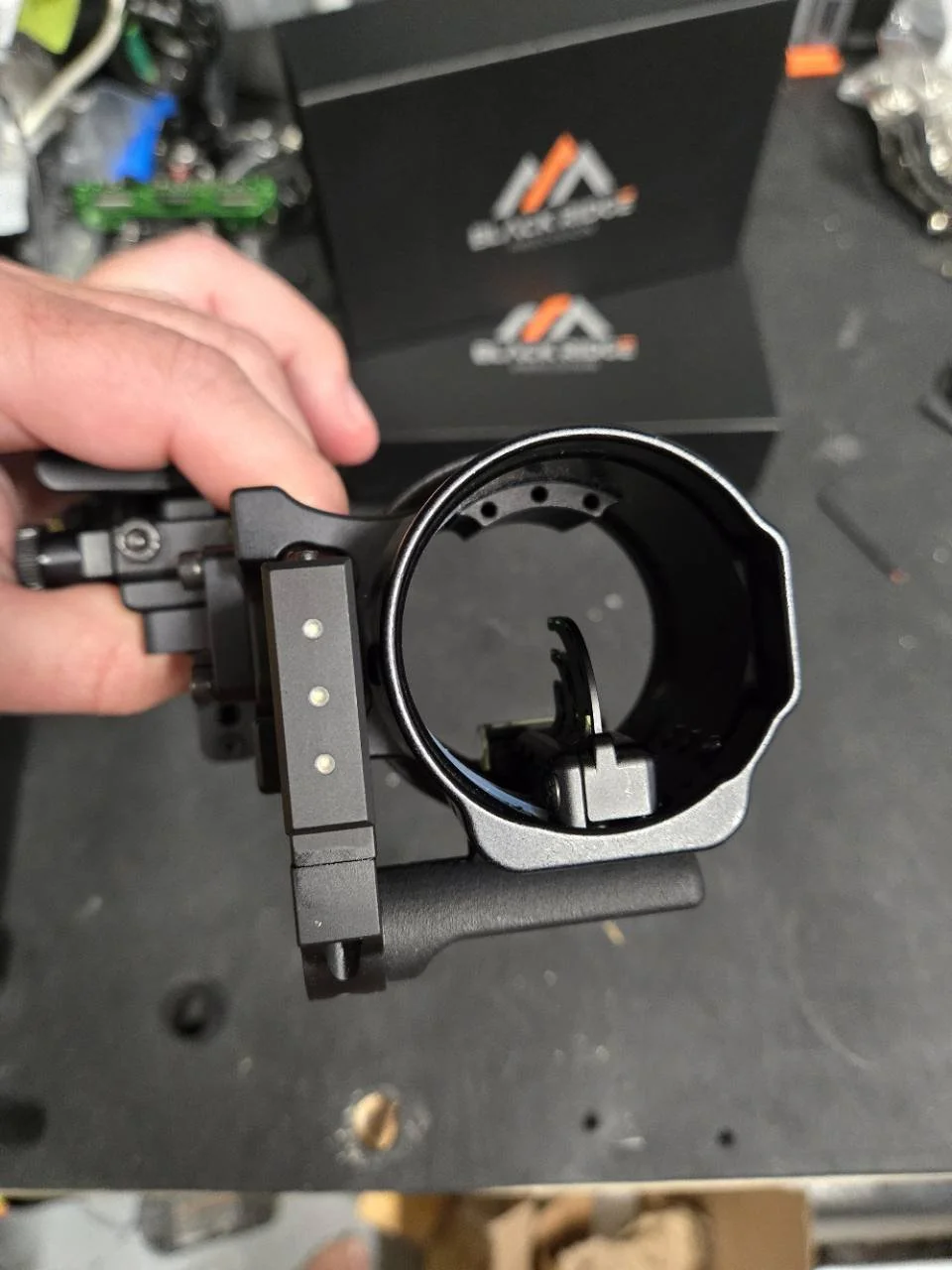

Depending on the selected light mode, LYNQ can use a single LED or progressive three-LED feedback. Reverse modes support installations where the LED face is oriented away from the shooter.

Configured around your shot

Choose from five cant sensitivity settings: 0.2°, 0.4°, 0.6°, 0.8°, or 1.0°. The default setting is 0.6°. Eight brightness levels support changing light conditions, and LYNQ stores the selected brightness after the required save interval.

Automatic orientation supports vertical, horizontal, and inverted installations. Orientation Lock can also be used when the unit needs to operate in one specific physical mounting position.

Why third-axis setup matters

Bow cant is the bow's rotation around the direction of aim. Third-axis alignment determines whether the sight's level remains a truthful vertical reference when the bow is pitched uphill or downhill. A sight can appear level on flat ground but provide a misleading indication on an angled shot if its third axis is incorrectly aligned.

Third-axis setup should be checked at full draw because draw-induced torque can affect the relationship between the bow, sight, and gravity. LYNQ provides the electronic cant indication after the physical sight system has been aligned. Once installation and third-axis adjustment are complete, User Zero establishes the electronic zero reference.

Designed for practical field use

LYNQ uses a replaceable CR2032 battery and displays battery status during startup. The LEDs enter sleep mode after ten minutes of inactivity and reactivate when motion is detected. Full automatic power-off can be configured from one to five hours or disabled.

Specifications

Dimensions1.5 × 1.235 × 0.43 in / 3.81 × 3.12 × 1.09 cm Weight1.1 oz / 28 g Power Replaceable CR2032 battery, included Battery life100+ hours at default settings; 200+ hours with medium brightness and single-LED mode Sensitivity0.2°, 0.4°, 0.6°, 0.8°, or 1.0° Default sensitivity0.6° Brightness Eight levels Light modes Six selectable modes Orientation Automatic orientation or Orientation Lock Sleep mode LEDs switch off after 10 minutes of inactivity Automatic power-off1–5 hours or disabled Operating range-10°F to +105°F / -23°C to +45°C Mounting screw torque Maximum 10 in-lb

Choose the configuration for your sight

Select the exact sight model from the Sight Compatibility variant selector before adding LYNQ to your cart. Your selection determines the compatible mounting configuration supplied with the system.

Manufacturer Currently supported sight or scope

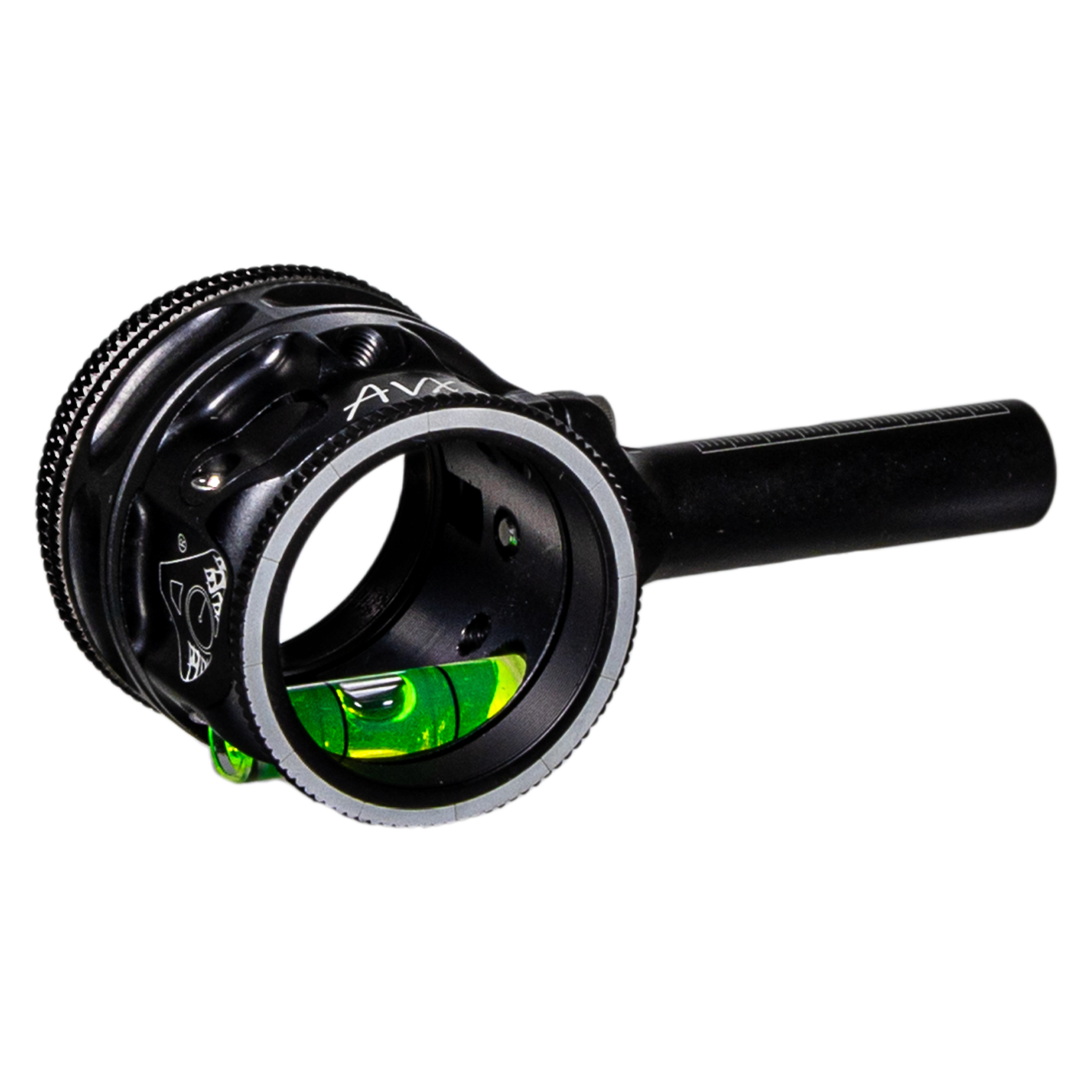

• AxcelAVX-31,

• AccuStat II,

• AV-41,

• AVX-41

• Shrewd Mini Mag 29 mm,

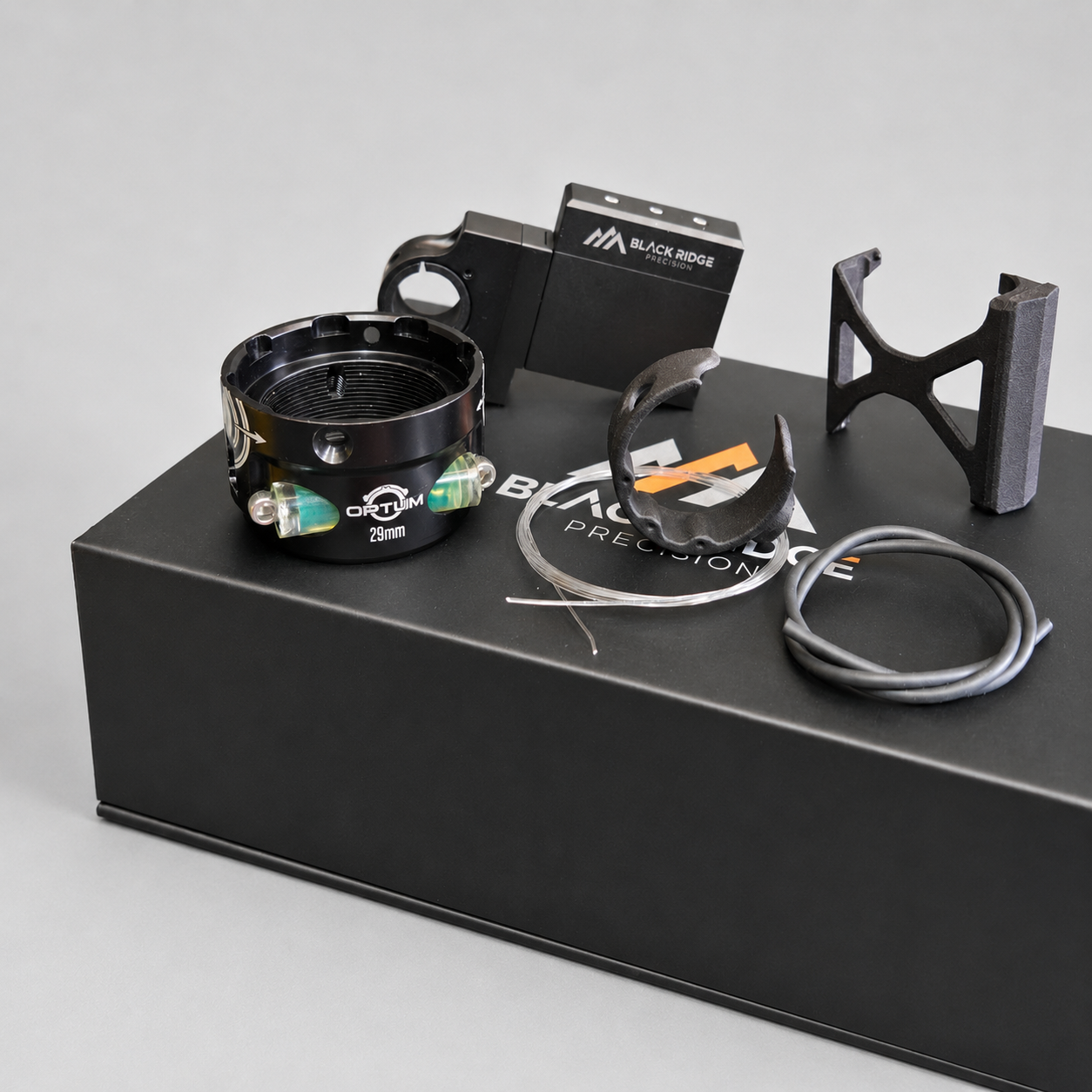

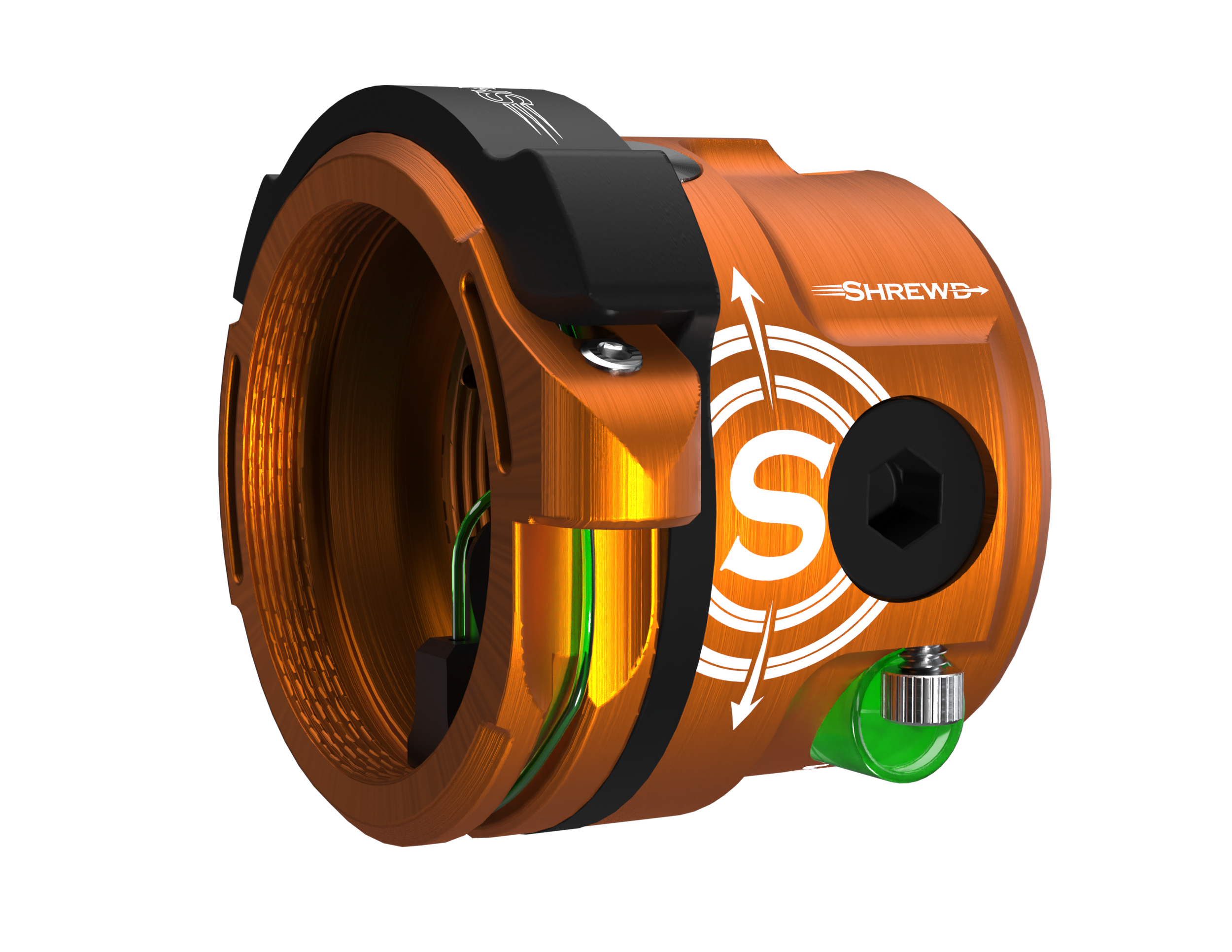

• Optum 29 mm,

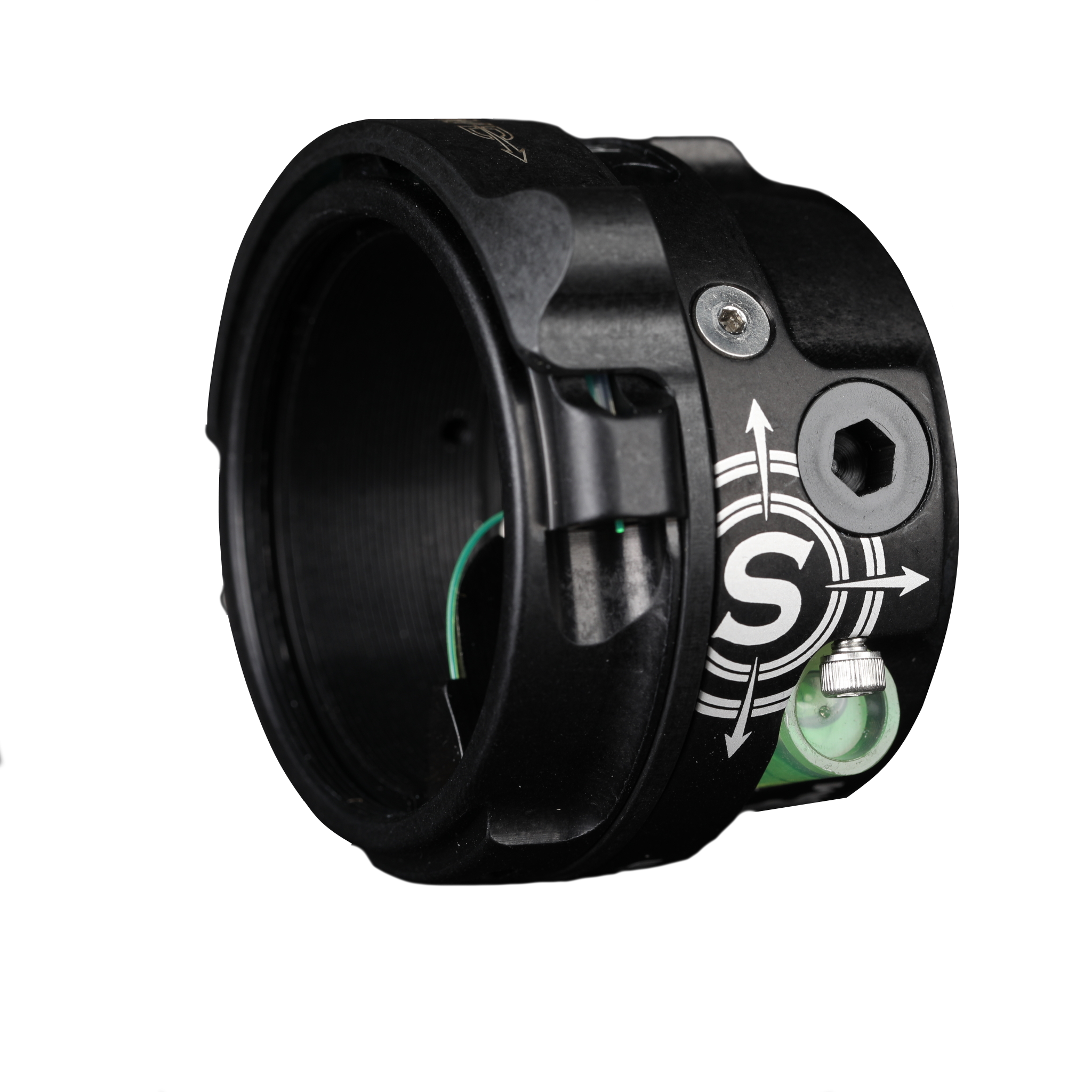

• Optum 35 mm,

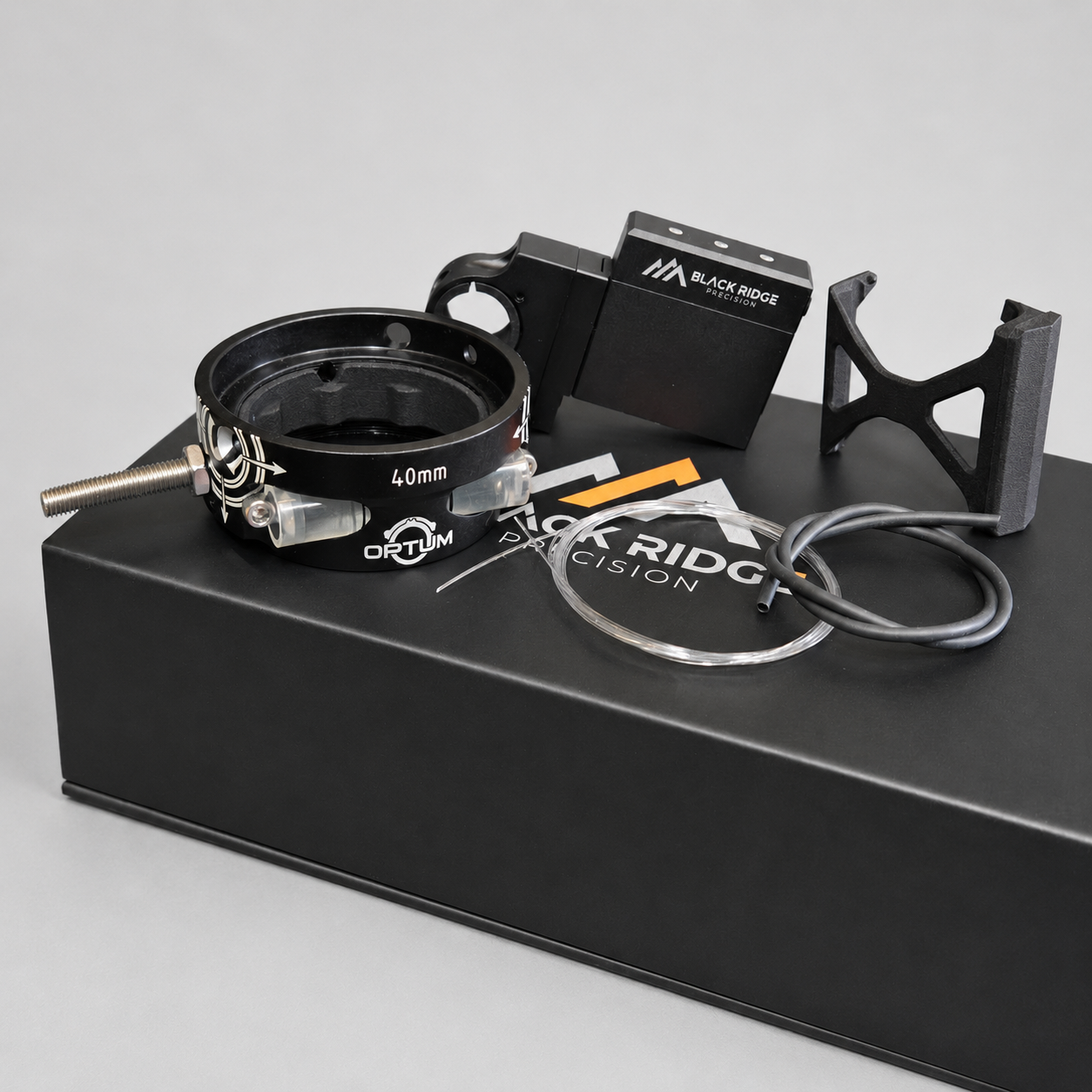

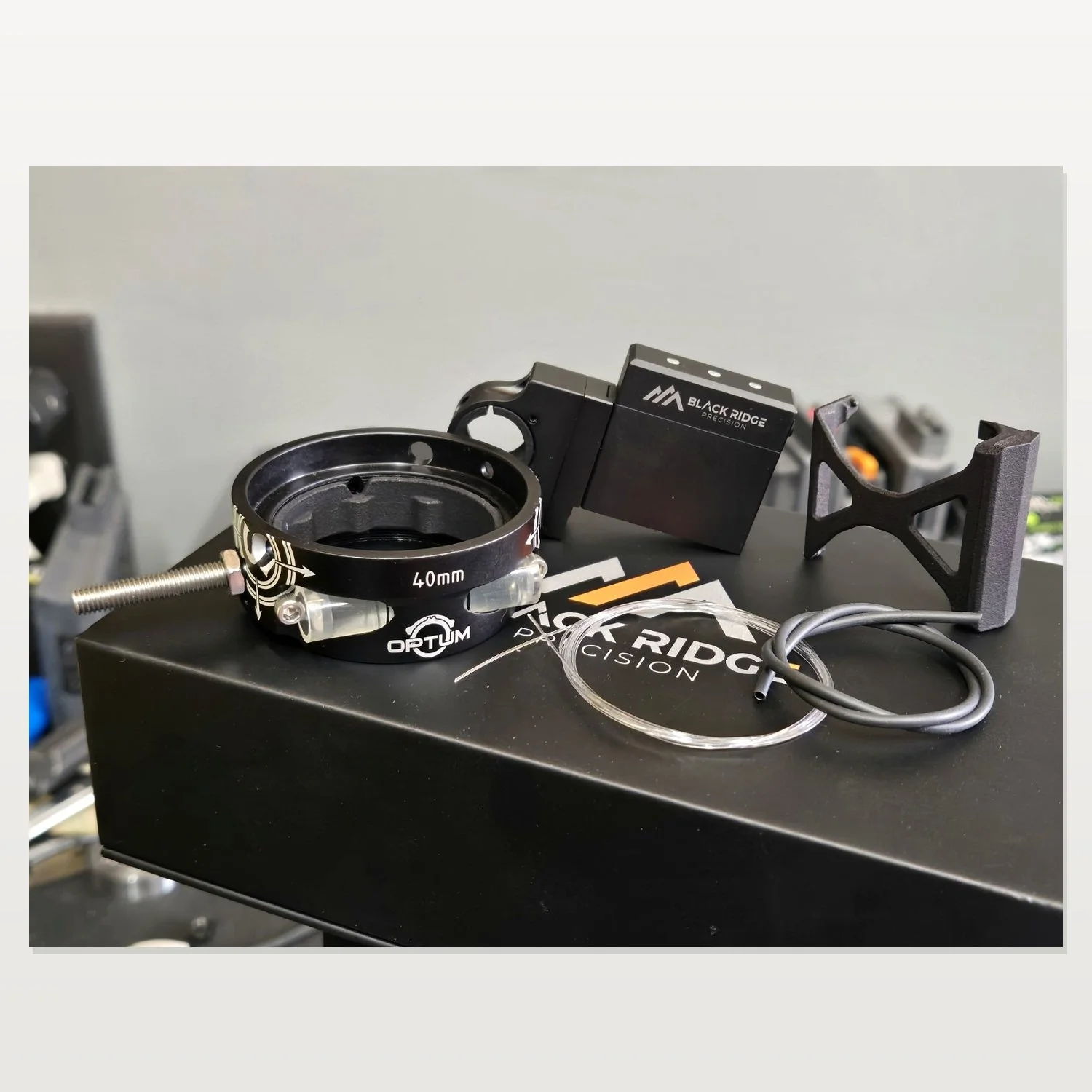

• Optum 40mm

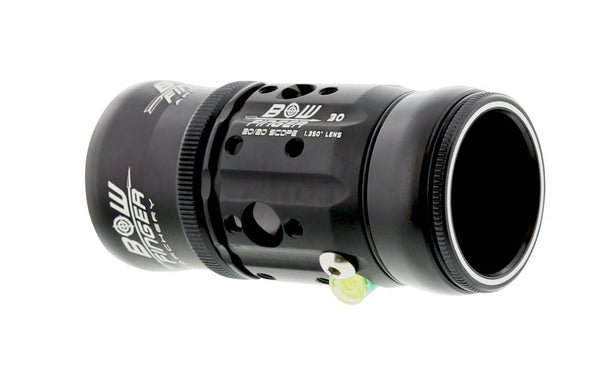

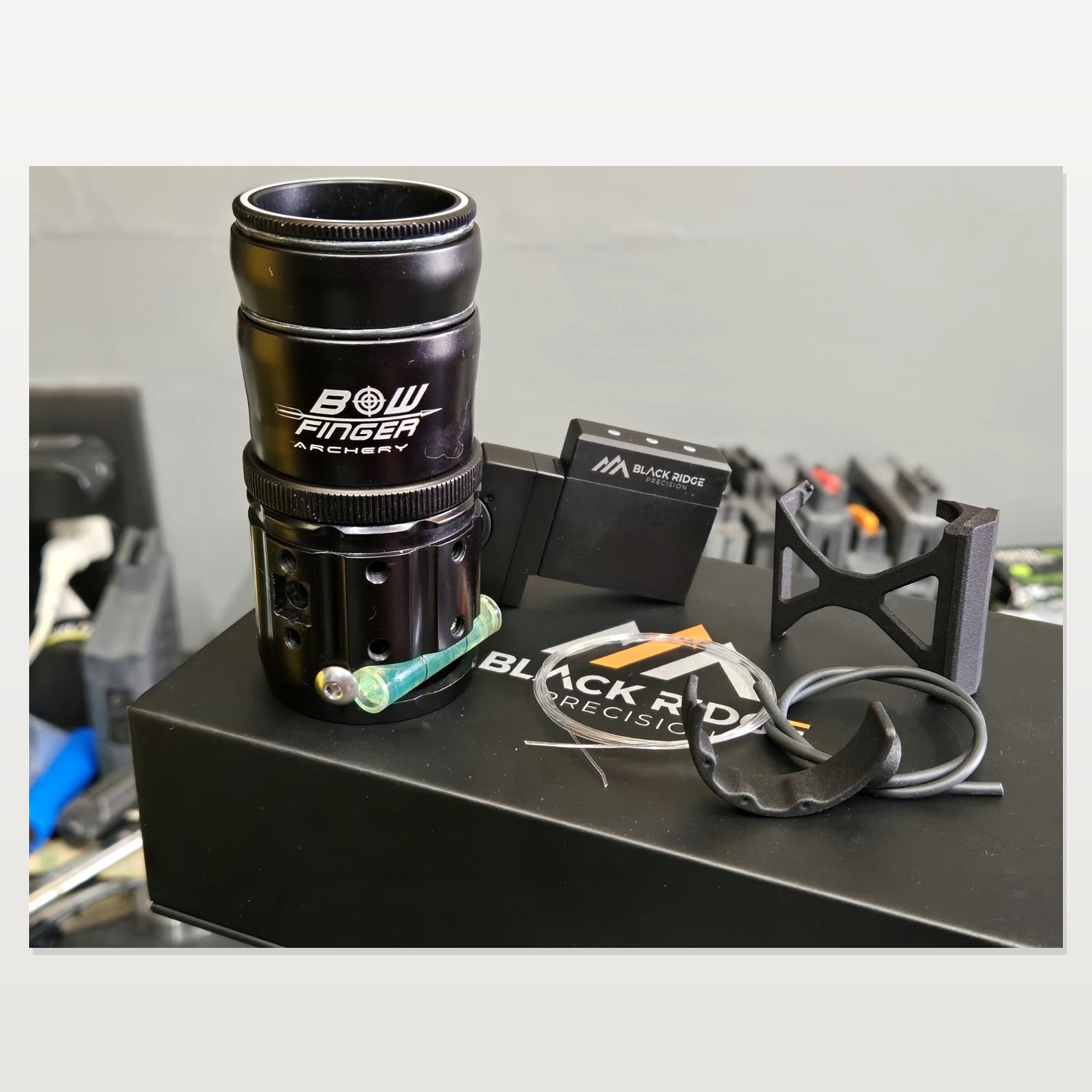

• Bowfinger20/20 Scope kit 30 mm,

• Bowfinger 20/20 Scope Kit 35 mm

• Spot Hogg Boonie DT,

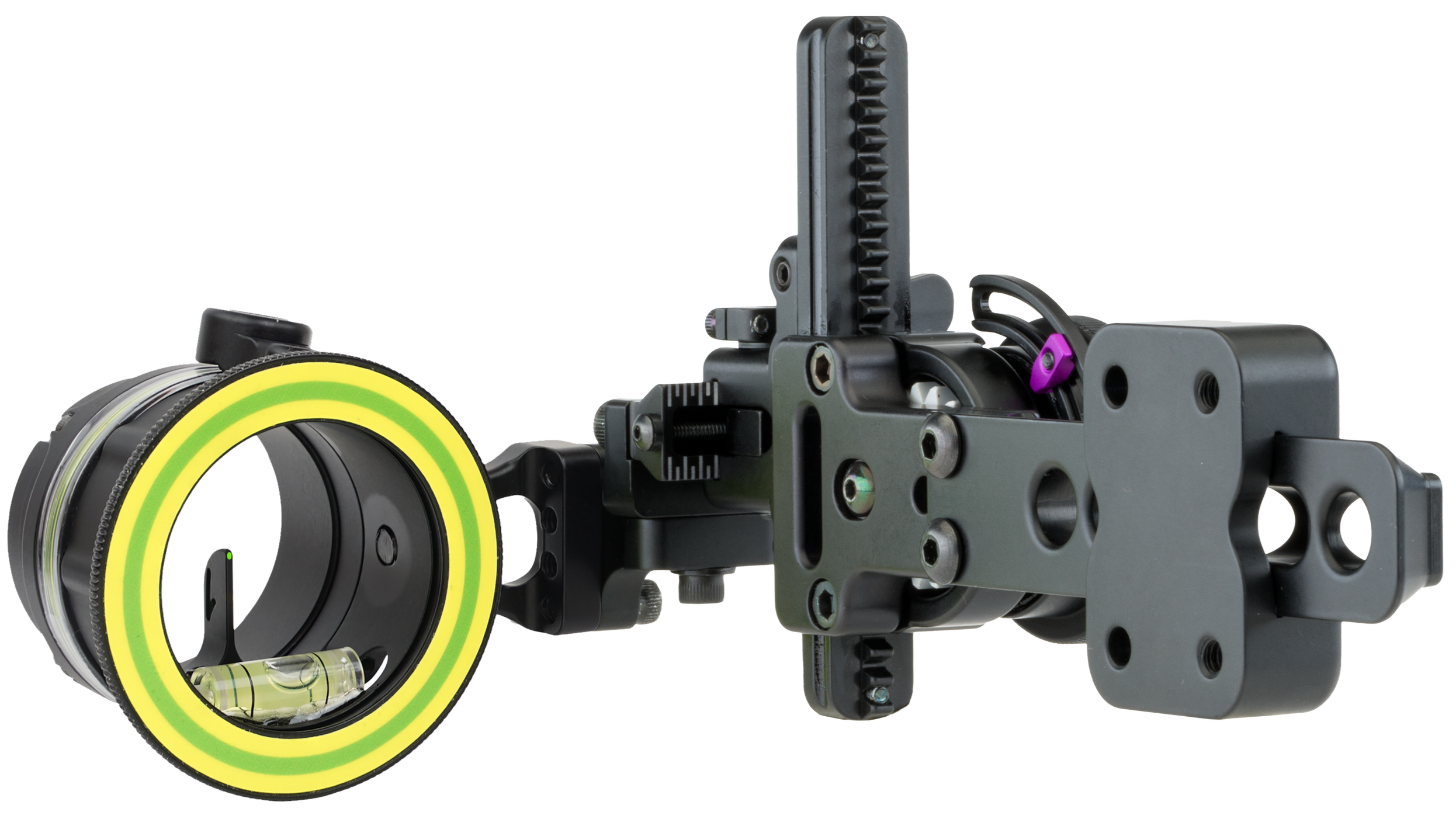

• Spot Hogg ROTI

• Black Gold Mountain Lite

• Black Gold Dual Trac

• BowtechCentermass Pro Hunter

If your exact sight is not listed, contact Black Ridge Precision before ordering so compatibility can be confirmed.

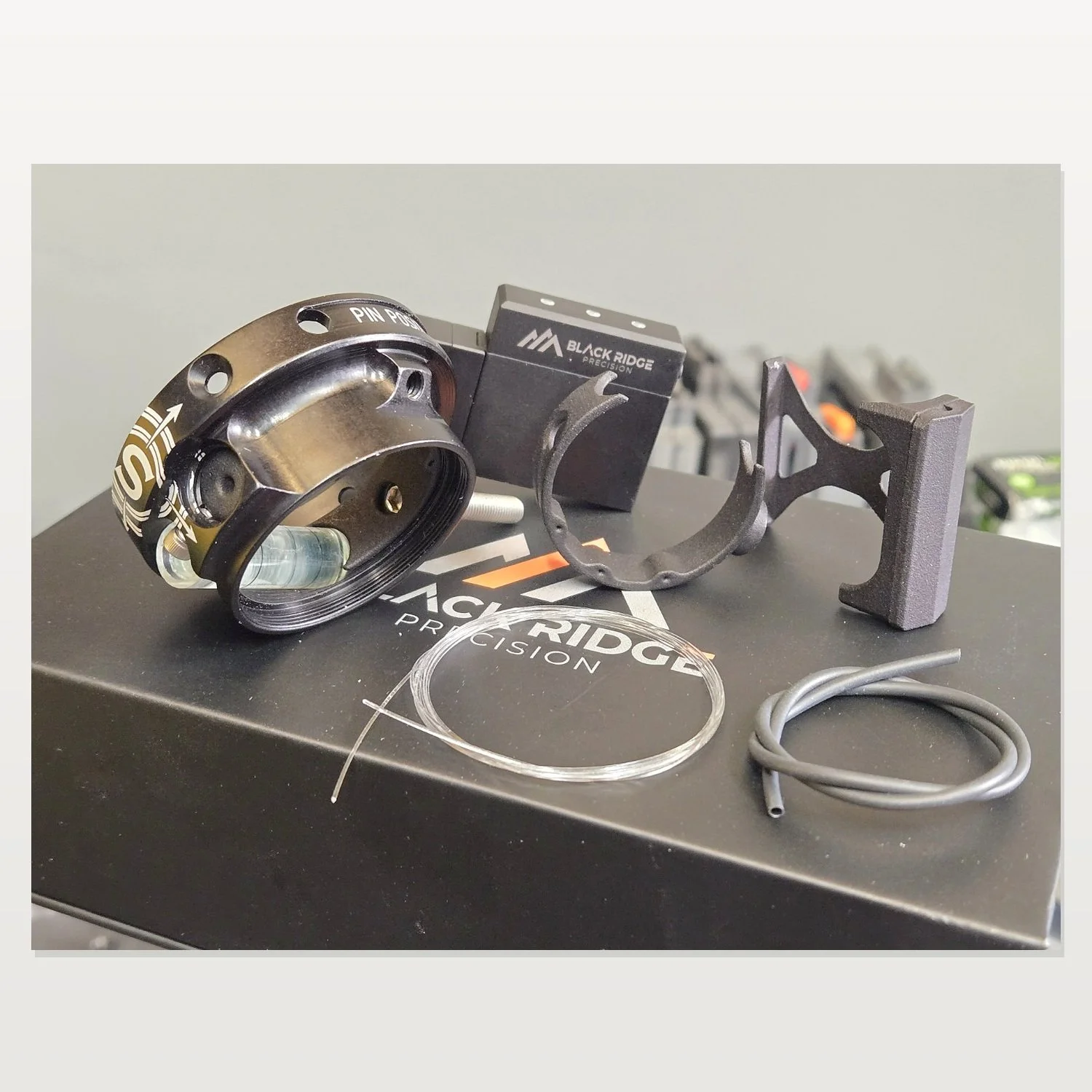

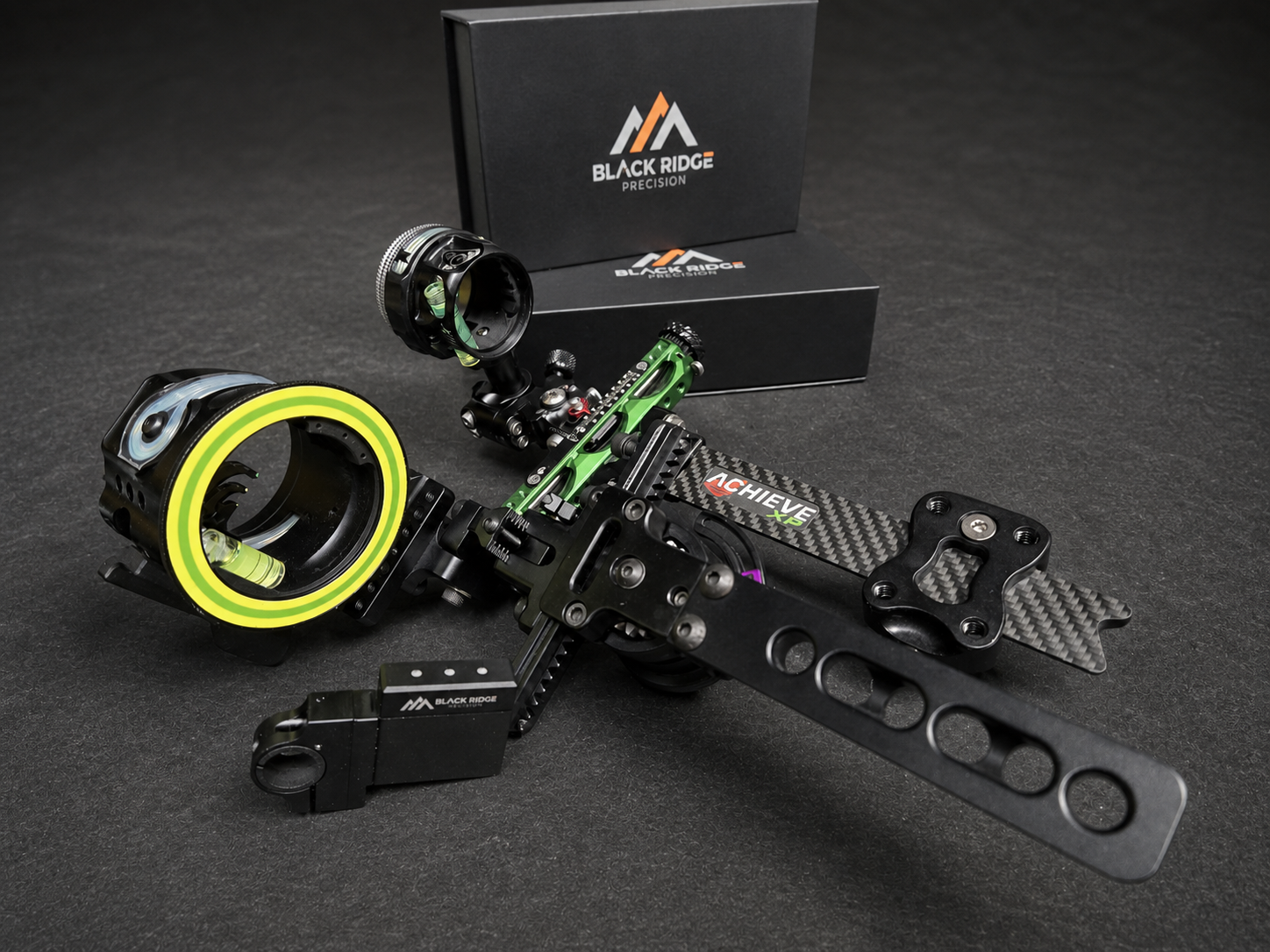

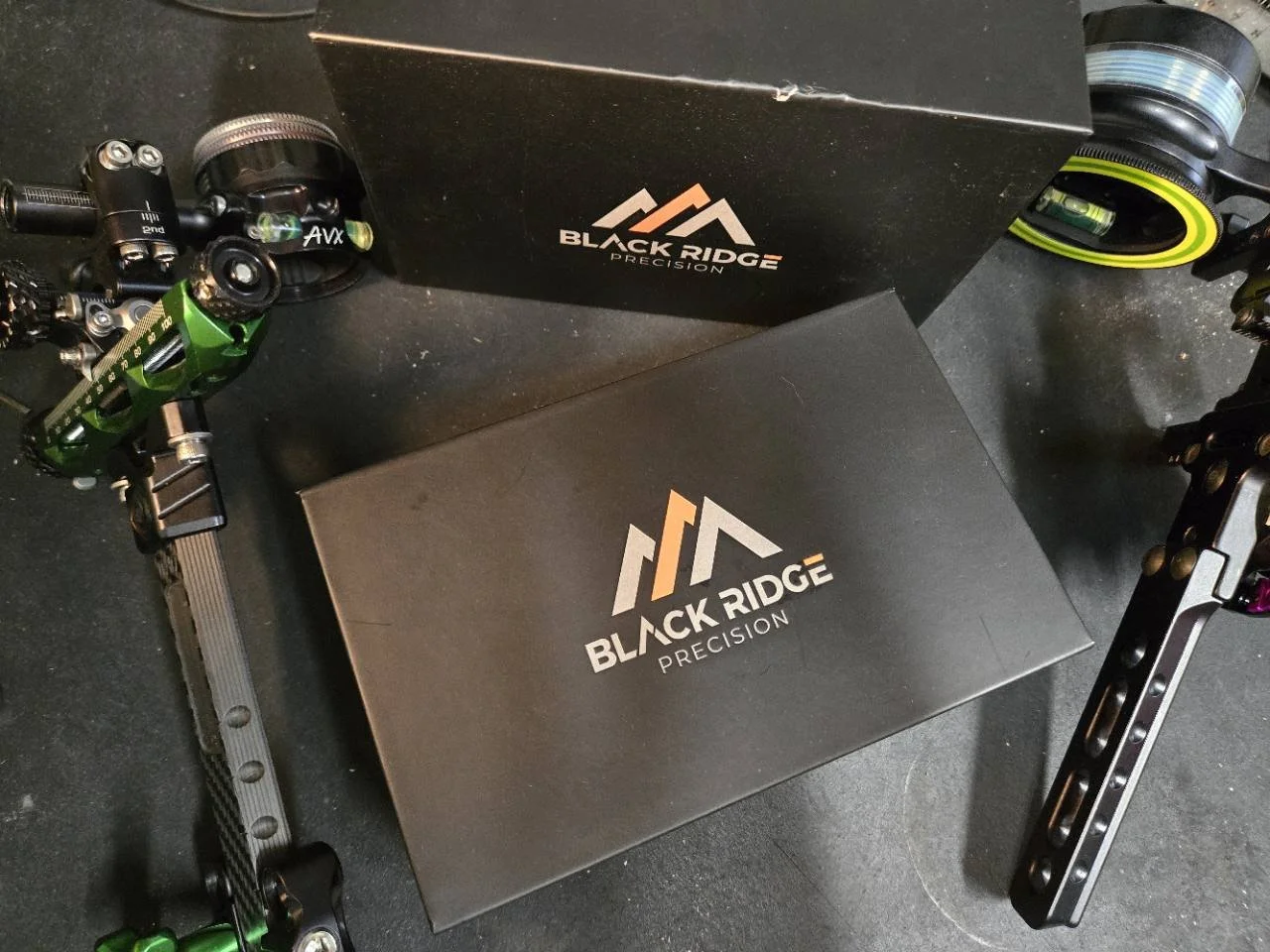

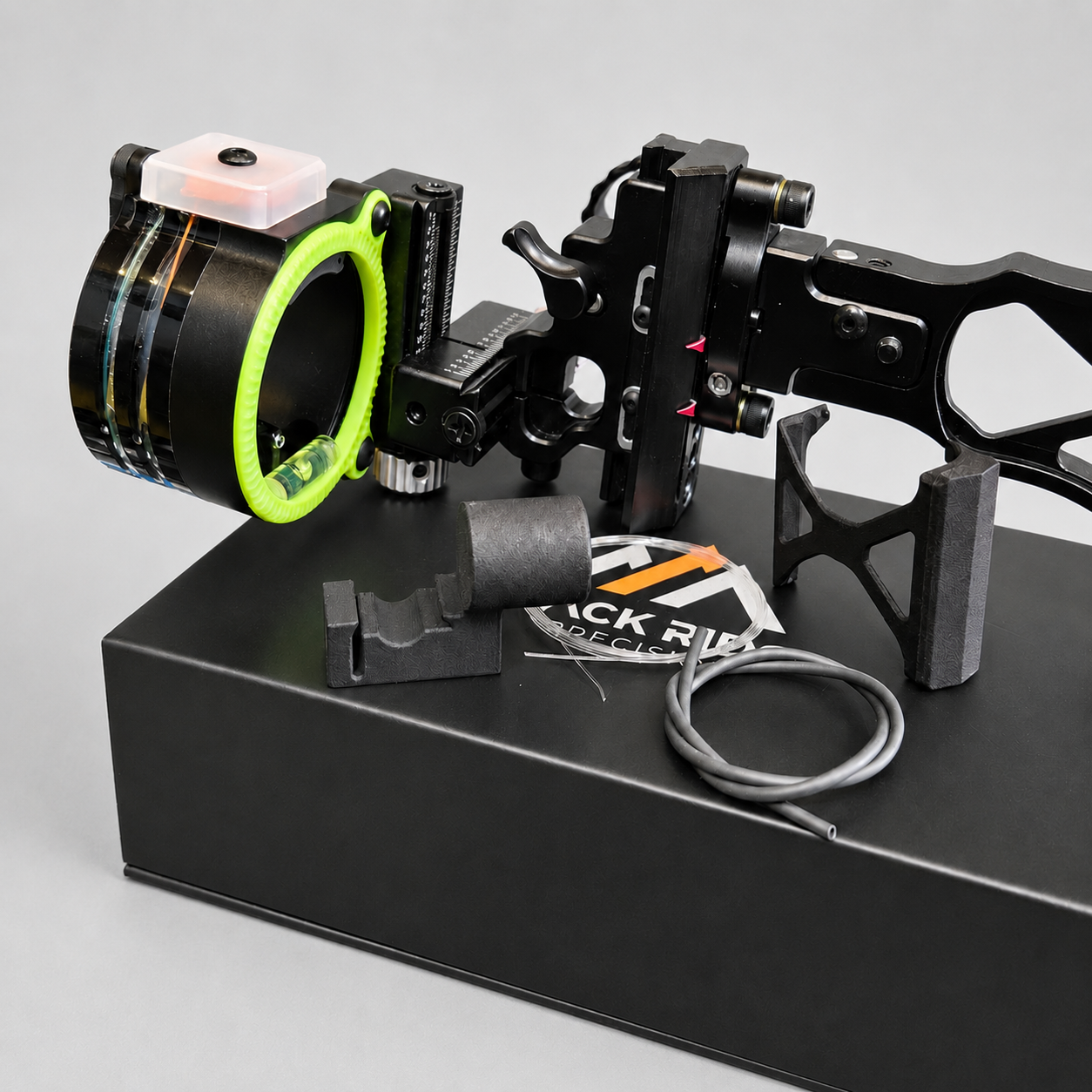

Illustration notice: Product and sight configurations shown in the photographs are for illustration purposes only. Multiple sight-compatible LYNQ configurations are available. Included components and fitment are determined by the variant selected at checkout.
